Hand-fitting cases



Material: Makrolon Bayer

Characteristic

Continuous use temperature, without stress

C

115 - 125

Dimensional stability to heat according to Vicat VST/B/120

C

145

UL extinguishing test for plastic materials

category

V-2

Breakage resistance s R

MPa

>65

Notes:

  1. All the case can closing screws are made of stainless steel.
  2. A set of gaskets can be supplied to make the KPAC0 - KPAC1 - KPAC1B cases hermetic.
  3. On request, and for quantities, we can supply the case with a different colour and material.

Hand-fitting cases models:


Hand-fitting case model "KPAC0" closed without battery

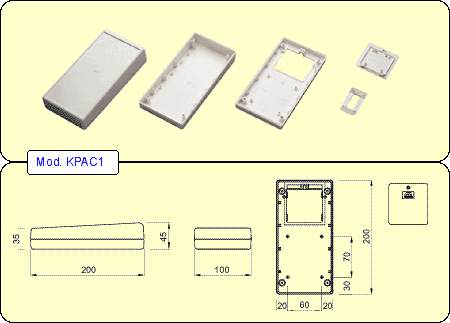

Hand-fitting case model "KPAC1" closed with door

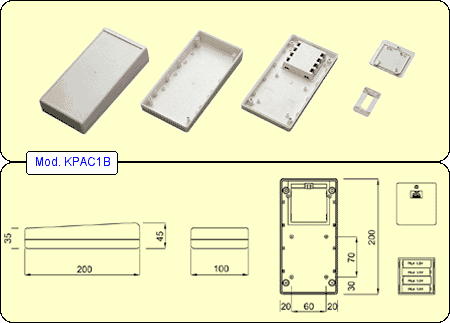

Hand-fitting case model "KPAC1B" closed with battery

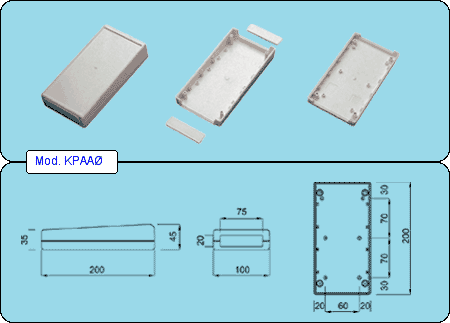

Hand-fitting case model "KPAA0" open without battery

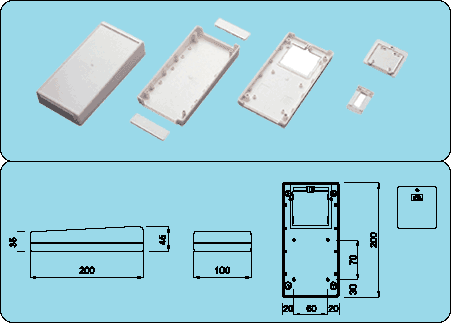

Hand-fitting case model "KPAA1" open with door


Hand-fitting case model "KPAA1B" open with battery

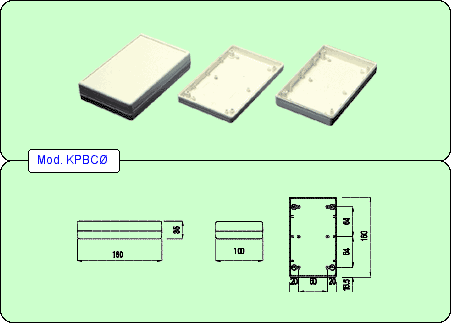

Hand-fitting case model "KPBC0" open without battery


PHand-fitting case model "KPBC1" open with door


Hand-fitting case model "KPBC1B" open with battery
