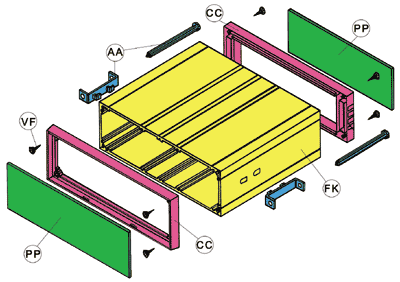

PLASTIC CASES TO DIN 43700 STANDARDS
|
|
Info
|
|
Format code |
Standard length of plastic body |
Standard packaging lengths |
||
 |
48 x 96 |
048096 |
124 |
179 |
160 |
215 |
|
|
|
48 x 144 |
048144 |
114 |
139 |
150 |
175 |
|
|
|
96 x 96 |
096096 |
94 |
124 |
130 |
160 |
|
FRONT FRAME AND BORING TEMPLATE
|
B |
A |
F |
G |
|
48 |
96 |
92 + 0.8 |
45 + 0.6 |
|
48 |
144 |
138 + 1.0 |
45 + 0.6 |
|
96 |
96 |
92 + 0.8 |
92 + 0.8 |
|
Front frame
|
Boring template
|
