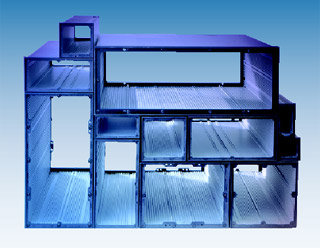

Aluminium cases to Din 43700 standards |
|
Info
|
DIN format in mm |
Format code |
Standard length of aluminium body |
Standard packaging lengths |
||
48 x 48 |
048048 |
119 |
- |
160 |
- |
||
36 x 72 |
036072 |
80 |
105 |
- |
- |
||
48 x 96 |
048096 |
124 |
179 |
160 |
215 |
||
72 x 72 |
072072 |
114 |
139 |
150 |
175 |
||
96 x 96 |
096096 |
94 |
124 |
130 |
160 |
||
72 x 144 |
072144 |
114 |
139 |
150 |
175 |
||
96 x 192 |
096192 |
124 |
179 |
160 |
215 |
||
144 x 144 |
144144 |
114 |
139 |
150 |
175 |
||
144 x 192 |
144192 |
124 |
179 |
- |
- |
||
144 x 288 |
144288 |
124 |
179 |
- |
- |
SIZES OF
DIN 43700 PANELS
DIN format in mm |
Format code |
Front push-fit panel size |
Rear push-fit panel size |
48 x 48 |
048048 |
44.8 x 44.8 |
42.3 x 29.9 |
36 x 72 |
036072 |
31.5 x 67.5 |
29.8 x 52 |
48 x 96 |
048096 |
91.7 x 43.8 |
73.8 x 40.3 |
72 x 72 |
072072 |
67.7 x 67.7 |
64.6 x 49.1 |
96 x 96 |
096096 |
90.6 x 90.6 |
86.6 x 71.9 |
72 x 144 |
072144 |
138.9 x 67 |
119.8 x 62.8 |
96 x 192 |
096192 |
187 x 90.7 |
168 x 86.5 |
144 x 144 |
144144 |
139.2 x 139.2 |
134.9 x 116.2 |
144 x 192 |
144192 |
185.4 x 137.7 |
159.5 x 131.9 |
144 x 288 |
144288 |
280.7 x 137.3 |
259.5 x 131.2 |
B | A | G Max | F max |
48 | 48 | 45 + 0.6 | 45 + 0.6 |
36 | 72 | 33 + 0.6 | 68 + 0.7 |
48 | 96 | 45 + 0.6 | 92 + 0.8 |
72 | 72 | 68 + 0.7 | 68 + 0.7 |
96 | 96 | 92 + 0.8 | 92 + 0.8 |
72 | 144 | 68 + 0.7 | 138 + 1.0 |
96 | 192 | 92 + 0.8 | 186 + 1.1 |
144 | 144 | 138 + 1.0 | 138 + 1.0 |
144 | 192 | 138 + 1.0 | 186 + 1.1 |
144 | 288 | 138 + 1.0 | 282 + 1.3 |
Front frame
|
Boring template |
